Our Services

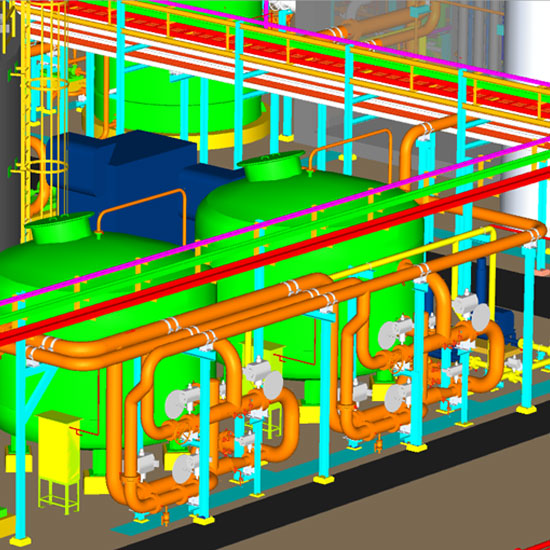

3d Modelling

• Intelligent Modelling with tag nos. for Equipments, instruments, line numbers etc.
• Civil & Structural including Foundation
• Equipments with Supports & Mountings
• Piping with in-line instruments & supports
• Pipe Rack/Trestles/Sleepers/Trenches
• Roads/Pavements/Accessways
• Erection & Maintenance Equipments
• Electrical Panels/MCC/JBs etc.
• Cable Tray Routing
• Extraction of Layouts, Isometrics, Supports, MTOs
• Model reviews, clash checks
• Walk through checks & presentations
